Inclined Planes and Wedges: Mastering the Mechanics of Simple Machines

Simple machines have shaped the course of human history and fueled innovation for centuries, quietly easing everyday tasks and making our tools more efficient. The concepts behind devices such as the inclined plane and the wedge may seem basic, but their impact is undeniable, forming the backbone of both ancient and modern engineering. Whether you’re sliding a heavy crate onto a dock, splitting firewood, or opening a door, you’re using technology perfected thousands of years ago.

If you’ve ever wondered how we went from lifting stones to building skyscrapers—or marveled at how easily a sharp edge slices wood—you’re already in the world of simple machines. In this article, we dive deep into inclined planes and wedges, examining how these fundamental tools harness the forces of physics and continue to shape our everyday environment. We’ll uncover their mechanisms, their history, and why mastering the basics of these devices will forever change the way you look at motion, work, and invention.

What Are Simple Machines? A Framework for Force

Simple machines are the most fundamental devices that exploit basic principles of physics to make work easier, changing the magnitude or direction of a force. These six classics—the lever, wheel and axle, pulley, inclined plane, wedge, and screw—are the building blocks on which more complex machinery and mechanisms are constructed. Over the centuries, inventors and workers have used these devices to multiply forces, manipulate motion, and solve problems beyond normal human capability.

Each simple machine essentially boosts efficiency and reduces effort, and they fall into two broad categories:

• Torque-balancing machines: those that rely on balancing rotational forces (torques). Examples include the wheel and axle, levers, and pulleys.
• Force-vector-resolving machines: those that work by splitting and redirecting forces into different vectors. The wedge, screw, and inclined plane belong to this crucial group.

Understanding these categories helps us see how seemingly simple tools—like ramps or axles—are in fact ingenious applications of physics, optimizing energy transfer and letting us do more with less.

The Inclined Plane: Turning Gravity into an Ally

An inclined plane, often called a ramp, is a flat surface set at an angle to the horizontal, designed to raise or lower loads with less effort than lifting them straight up. This straightforward geometric adaptation is one of humanity’s oldest mechanical solutions, fundamental since the dawn of civilization.

The basic idea is simple: by increasing the distance over which an object is moved, the force required to lift it is spread out, allowing a single person or small team to handle heavy loads.

Historically, inclined planes were used to build wonders such as the Egyptian pyramids, where long sloping roads let workers haul enormous stone blocks to great heights. They also served in Roman roadbuilding, siege warfare, and shipbuilding, where dry docks use gentle slopes to move vessels in and out of the water.

How Inclined Planes Work: Mechanics, Trade-offs, and Physics

The brilliance of the inclined plane lies in the balance between force and distance. Instead of lifting an object directly—requiring a force equal to its weight—sliding it up a mild slope demands far less effort, although over a greater distance. This is known as the mechanical advantage of the inclined plane.

Mechanical advantage (MA) measures how much a simple machine multiplies your input force. For inclined planes, it’s the length of the slope (the run) divided by its vertical height:

• MA = Ramp length / Height

For example: If a ramp is 5 meters long and rises 1 meter, the mechanical advantage is 5. You need only one-fifth the force to move the object compared with lifting it vertically—but you must push it five times farther, so the total work done remains the same under the laws of physics. There’s no free lunch, just a clever trade-off.

The slope angle also matters: A gentle incline (gradual slope) stretches the distance but reduces the effort, while a steep incline shortens the distance but requires more force. Striking this balance is key in designing accessibility ramps, loading docks, and mountain roads.

Friction and Real-World Performance of Inclined Planes

Friction is a real-world factor that can help or hinder the effectiveness of inclined planes. While the theoretical mechanical advantage assumes frictionless surfaces, actual results always depend on this resistive force between contact surfaces.

The angle of repose—sometimes called the angle of friction—is crucial: It’s the steepest angle at which a load remains at rest without sliding. This angle depends on the materials involved—say, a wheelchair’s rubber tires versus a hand truck’s metal wheels—and directly affects how steep a ramp can be before objects slide on their own.

If the ramp angle is less than the angle of repose, the load stays put unless extra force is applied. If the angle exceeds it, gravity overcomes friction and things can slide uncontrollably.

Components and Forces at Play

Any object on an inclined plane is subject to several forces:

• The applied force (parallel to the surface), meant to move the object up or down.
• The object’s weight (always acting vertically downward), which must be at least partly overcome for upward motion.
• The normal force (the perpendicular support from the plane), counteracting part of the object’s weight.
• The frictional force (opposing motion), found by multiplying the normal force by the coefficient of friction between surfaces.

These forces interact to determine how easy or difficult it is to move a load up the ramp. Engineers and designers consider all these factors when creating ramps, slides, and other systems that use inclined planes.

Everyday Uses of Inclined Planes

The presence of inclined planes extends far beyond ancient construction—it’s woven into daily life. Common examples include:

• Loading ramps for trucks, aircraft, and ships, making the transfer of heavy cargo straightforward.

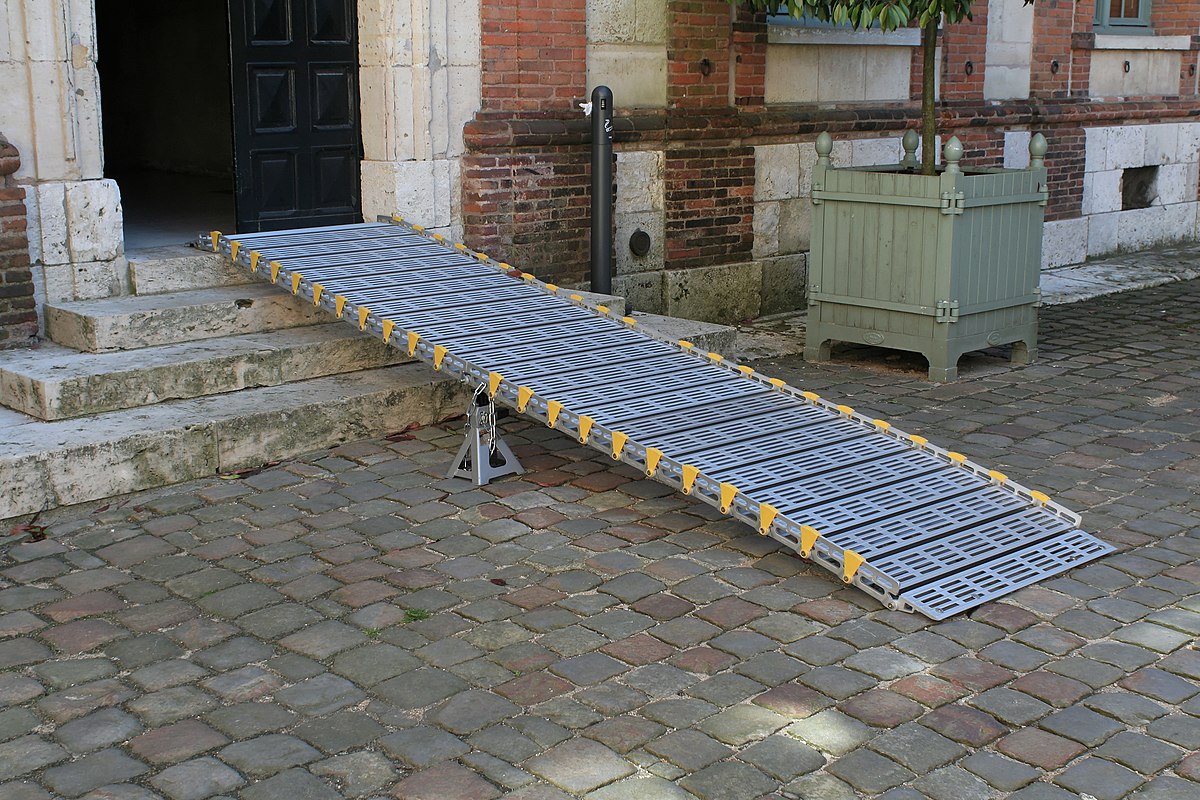

• Accessibility ramps for wheelchairs, providing essential ways to bypass steps and curbs without risky effort.
• Escalators and moving walkways, which apply the inclined plane principle to carry people smoothly between levels.
• Slides in playgrounds and water parks, harnessing gravity and controlled friction for fun (and a physics lesson!).

Inclined planes also appear on ski slopes, mountain trails, theater seating, and countless engineering solutions.

The Wedge: The Inclined Plane in Motion

While inclined planes are generally fixed, a wedge is what you get when you set that surface in motion. A wedge is, in essence, two inclined planes joined edge-to-edge, creating a sharp edge that can penetrate materials to split, cut, or hold them apart.

Wedges are everywhere: from knives and axes to chisels, nails, doorstops, shims—and even in your own teeth. Bite into an apple, and that’s a wedge at work.

The basic function of a wedge is to multiply force over a small area, turning a downward push into lateral forces that split or separate materials. This simple principle lets an axe cleave logs with one swing or a nail secure wood with a hammer blow.

How Wedges Work: Physics and Trade-offs

When you drive the thick end of a wedge into a material, the force you apply is redirected sideways by its sloping faces, amplifying your effort and forcing the material apart.

Mechanical advantage is key: The longer and thinner (sharper) the wedge, the less force you need for it to work. But a thinner wedge can bend, nick, or break, so there’s always a balance between strength and efficiency.

• MA of a wedge = Wedge length / Wedge width

A long, thin wedge slides in easily but may require more strikes and care to penetrate, whereas a wider, steeper wedge delivers force quickly but needs greater effort.

Types of Wedges and Their Uses

Wedges come in many forms, tailored to specific tasks:

• Single-face wedges: Chisels, knives, and some plows concentrate force in one direction to cut or split.
• Double-face wedges: Axes, certain splitting tools, and doorstops have two sloped faces, generating force left and right from the entry point.
• Fastening wedges: Doorstops and shims wedge into an opening to hold doors ajar or lock objects in place.
• Cutting wedges: Arrowheads, razor blades, and snowplow fronts use wedge shapes to cleave resistance—air, snow, water, or materials like wood and metal.

Even nature uses wedges: Many animal teeth, claws, and beaks have wedge shapes, proving the design’s evolutionary and engineering effectiveness.

Limitations and Trade-offs of Inclined Planes and Wedges

Although simple machines make tasks easier, trade-offs always exist. For inclined planes:

• Longer ramps take up more space, which can be a problem in confined environments like urban buildings or small homes.
• Friction can reduce efficiency, demanding more effort than ideal friction-free calculations suggest.

For wedges:

• Thin, sharp wedges can nick or deform, limiting their lifespan and requiring frequent maintenance.
• Using too much force or applying the wedge improperly can damage either the workpiece or the wedge itself.

Recognizing these limitations helps improve design, upkeep, and application for greater efficiency and safety.

Compound Machines: When Simple Machines Work Together

Many modern tools and devices combine several simple machines for greater effectiveness. When you see a hydraulic jack, a bicycle, or a crane, you’re witnessing a “compound machine” in action.

• Bicycles: Gears (wheels and axles), brakes (levers), and chains (pulleys) work together to multiply efficiency and speed.
• Hydraulic jacks: Combine levers, screws, and inclined planes to lift thousands of kilograms with limited effort.
• Escalators and conveyor belts: Merge moving inclined planes with belts and pulleys to move people or goods effortlessly.

Even in art conservation and museums, compound machines with ramps, pulleys, and levers safely move sculptures and delicate objects with precision.

History: Inclined Planes and Wedges Through the Ages

Simple machines like inclined planes and wedges have been with us since prehistoric times. Early humans used stone axes and basic ramps to manipulate their surroundings. Egyptians built earthen ramps and massive causeways to position pyramid stones, while Roman engineers designed sloping roads and causeways to move people and goods over uneven terrain.

The Greeks even built a six-kilometer ramp, the Diolkos, across the Isthmus of Corinth, allowing ships to be hauled over land to save time and effort—an early, ambitious application of the inclined plane concept.

Wedges were also essential for survival: from splitting logs for fire to carving stone shelters, efficient force transfer was vital. Over time, these simple tools became cutting edges for hunting, work, and craft. Today their principles appear in advanced fields—from automotive engineering (aerodynamic cones) to aerospace (short wings and pointed noses piercing the atmosphere).

Inclined Planes, Wedges, and the Laws of Physics

The performance of inclined planes and wedges is explained mathematically by classical mechanics, particularly Newton’s laws and the concepts of work and energy.

Key physics concepts include:

• Mechanical Advantage (MA): the ratio of output force to input force. For inclined planes, it’s slope length divided by height; for wedges, wedge length divided by width.
• Work: force multiplied by displacement. No matter how clever the machine, you can’t cut the total work required; you merely distribute it differently—less force, more distance, or vice versa.
• Friction: always present in real scenarios, converting some energy into heat and affecting efficiency and safety on ramps and wedges.
• Force decomposition: On an inclined plane, gravity splits into two components: one that favors sliding and another that presses the object against the surface.
• Angle of repose: For both, the angle at which an object or tool begins to move or cut is vital—too steep or too flat, and efficiency plummets.

Real-World Case Studies: Simple Machines Solving Big Problems

Art conservation: Museum teams use compound machines combining inclined planes, levers, and pulleys to lift delicate sculptures—preserving priceless works without brute-force risk.

Agriculture: The evolution of the plow (a wedge) led to the chisel plow, able to delve into compacted soils thanks to its slender, curved shanks—an innovation that transformed soil management and enabled more sustainable farming.

Transport: Loading docks, vehicle ramps, and escalators use inclined planes to solve logistical challenges, making movement more accessible, swift, and labor-saving.

Construction: Engineers design temporary ramps to raise heavy machinery, just as ancient civilizations moved stones for monuments.

Simple Machines in Our Modern World

Although the basic design of inclined planes and wedges hasn’t changed much, their applications have multiplied. Innovations often arise by combining them with other simple machines, improving materials, or refining dimensions based on mathematical models and experience.

Innovative uses include:

• Automobiles and jet engines: Wedge shapes increase aerodynamics, reducing drag and boosting speed.
• Household tools and gadgets: From scissors to kitchen knives, doorstops, and snow shovels, the link between wedge and inclined plane is everywhere.
• Accessibility and urban planning: Every ramp, sloped curb, or graded entryway is built to make movement safer and more inclusive.

Frequently Asked Questions

What’s the difference between an inclined ramp and a wedge?
An inclined ramp is a fixed surface that makes it easier to raise or lower heavy loads. A wedge, on the other hand, is a moving inclined plane (or two joined planes) designed to separate, split, or cut materials by concentrating force on a small area.

How do friction and materials affect performance?
Friction determines how steep a ramp can be before objects slip and how effective a wedge will be at cutting or separating. Rougher materials increase friction, smoother ones reduce it—hence many tools and ramps are carefully designed for their intended use.

Can simple machines be found in complex technologies?
Absolutely! Most advanced machinery—from factory automation to robotics and transport—uses combinations of simple machines: levers, wedges, screws, pulleys, and more. Understanding the basics gives you deep insight into everything from bicycles to skyscrapers.

What are the typical limitations?
Space, durability, and efficiency are key considerations. Ramps need length, wedges require sharpness and strength, and all must cope with real-world forces and friction. Proper materials and sound design solve these challenges every day.

Reflecting on the principles, history, and modern uses of inclined planes and wedges makes it clear that their power lies in their simplicity. These devices transform everyday problems into manageable tasks, regardless of scale or complexity. From pyramids to playgrounds, and from a kitchen knife to advanced farm machinery, the power of simple machines surrounds us—offering practical solutions, driving innovation, and reminding us that sometimes the best answers remain the simplest.
