A Comprehensive Introduction to Node-RED: Functionality, Uses, and Community

Over the past few years, the way we connect devices, process data, and automate tasks has undergone a dramatic evolution, especially with the rise of the Internet of Things (IoT) and smart environments. For many, programming once felt exclusive to professionals—until tools like Node-RED arrived and made building complex flows both accessible and, honestly, pretty fun.

If you’re new to Node-RED or simply curious about what makes it so popular for both tinkerers and industry professionals, this article will offer an in-depth, plain-English look at what Node-RED is, how it works, where it’s being used, and how you can tap into its powerful features. Whether you’re working on a smart home project, handling industrial automation, or exploring the world of edge computing, you’ll find plenty of practical info here to get inspired and understand why Node-RED matters.

What Exactly is Node-RED?

At its core, Node-RED is a flow-based, low-code development environment designed to simplify the process of wiring together hardware devices, APIs, and online services. Originally developed by IBM, Node-RED makes it possible for anyone—from non-programmers to experienced developers—to visually build applications that automate, transform, and visualize data from a huge variety of sources.

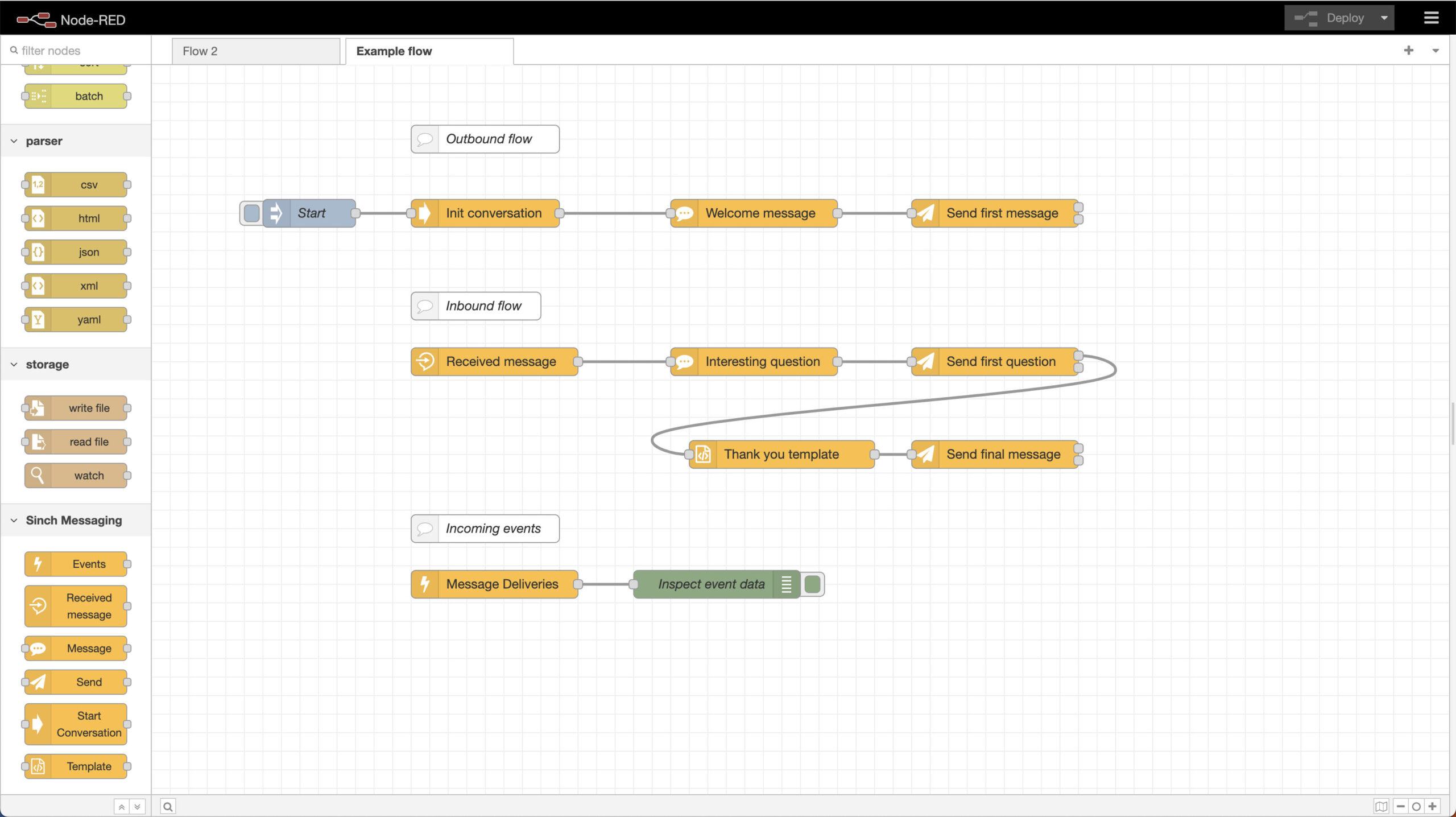

Instead of writing extensive code from scratch, users drag and drop nodes (think of them as building blocks) onto a canvas, connect them to establish the flow of data, and configure their behavior through a simple web interface. This approach breaks down barriers for entry and empowers a whole new wave of creators to automate everything from simple home tasks to complex industrial workflows.

Main Features and Architecture

Node-RED is primarily composed of two parts: the flow editor and the runtime. The flow editor is a browser-based interface that allows users to assemble and connect nodes visually, making it easy to see and modify how data moves through each step of the process. The runtime—built on top of Node.js—executes these flows and handles communication between nodes.

• Flow Editor: The intuitive, browser-based environment is accessible to both beginners and advanced users and makes debugging and building complex flows much simpler. You can drag nodes onto the canvas, connect them by drawing lines, and create custom logic with minimal effort.
• Nodes: These are the functional building blocks that process, transform, or interact with data. Each node performs a single task, ranging from receiving HTTP requests, processing data, or triggering events to sending commands to devices or external systems.
• Flows: A flow is simply a connected sequence of nodes that work together to achieve a larger task. When data enters a node, it’s processed and then forwarded to the next node based on the defined logic. This structure lets you easily visualize, create, and modify your application’s process chain.
• Node-RED Dashboard: An optional but widely used add-on, this dashboard interface lets you build user-facing web applications, visualize sensor data, and interact with flows through simple widgets. It’s perfect for monitoring, controlling, and presenting key information in real time.
• Command Line Tools: For more advanced users, Node-RED also offers CLI tools to automate deployment, administer remote instances, and handle batch operations.

All flows and configurations in Node-RED are stored in JSON format. This means you can export, back up, and share your projects easily—making collaboration and reusability one of the strongest aspects of the platform.

Why Node-RED? Key Benefits and Use Cases

The most compelling advantage of Node-RED is its accessibility. Whether you’re a hobbyist with no programming background or an engineer handling critical industrial systems, Node-RED’s visual, low-code approach means you can build sophisticated automation with minimal coding experience.

• Home Automation: Node-RED shines in DIY smart home projects, letting you seamlessly integrate sensors, lights, thermostats, and services like Amazon Alexa, Google Home, or Home Assistant. You can set up routines, automate security, visualize energy usage, or even manage complex schedules for appliances.
• Industrial Automation: Thanks to support for protocols like Modbus, OPC-UA, MQTT, and vendor-specific integrations (like Siemens S7), Node-RED is increasingly used in factories, process control, and building management. Its edge-computing capabilities let operators process data locally, reducing latency and enhancing reliability.
• IoT and Edge Applications: Connect edge devices, gateways, and cloud services to handle tasks like predictive maintenance, environmental sensing, or remote monitoring. The flexibility to process data on the edge or in the cloud opens up all sorts of scalable, robust solutions.
• Rapid Prototyping: Because of its drag-and-drop nature and instantly visible results, Node-RED is ideal for proof-of-concept and rapid prototyping—getting ideas working before investing in full-scale development.
• Data Transformation and Visualization: Integrate and transform raw data streams, cleanse or aggregate information, and then visualize results—either for personal projects or large-scale, production-ready dashboards.

The sheer range of connectors (over 4000 nodes at last count!) means Node-RED can talk to nearly any device, service, or protocol you might need, powering its growth in diverse sectors.

Open Source Community and Ecosystem

Node-RED’s thriving open-source ecosystem is one of its greatest strengths. IBM first released Node-RED as an open-source project, and since 2016 it’s been part of the OpenJS Foundation. This has fostered a dedicated community of developers, businesses, and enthusiasts who continuously contribute new features, nodes, and integrations.

Thanks to this collaborative, open model, Node-RED users benefit from:

• Regular updates and improvements to core functionality.
• Thousands of ready-to-use nodes for integrating with everything from smart home devices to complex industrial equipment.
• Extensive documentation, active forums, and a global user base eager to help newcomers or share experiences.
• Accessible learning resources, sample flows, and tutorials for every skill level.

Important community-driven projects have emerged as well, such as FlowFuse (formerly known as FlowForge), which offers enhanced collaboration, remote deployment management, and cloud hosting for Node-RED applications. Nick O’Leary, the tool’s original creator, is a core part of this effort, ensuring Node-RED keeps evolving to meet real-world needs.

How Does Node-RED Work?

Node-RED operates on the principle of dataflow programming, where applications are described as networks of ‘nodes’ connected via ‘wires,’ through which data flows. Each node, once it receives input (which could be a message, event, or piece of data), carries out its designated task—like making an HTTP request, evaluating a script, or transforming information—then passes the result along the chain.

The typical user experience is refreshingly straightforward: You fire up the Node-RED editor in your browser, drag nodes onto the canvas, connect them with lines that define how data moves, and deploy the flow in a single click. Debugging is visual and interactive—errors or log messages are shown in context, making troubleshooting far less intimidating than hunting through endless lines of code.

For advanced tasks, JavaScript functions can be embedded directly into flows, giving developers the freedom to fine-tune behavior without breaking the visual paradigm. This blend of simplicity and depth is a big reason why Node-RED appeals to such a wide audience.

Popular Protocols, Integrations, and Supported Devices

Node-RED’s flexibility comes from its expansive support for communication protocols and its library of nodes. Some of the major areas it covers include:

• IoT Protocols: MQTT (especially popular for lightweight, pub/sub messaging), HTTP/HTTPS, WebSockets, Modbus, OPC-UA, and more.
• Industrial Equipment: Integration with devices and controllers from Siemens, Schneider Electric, and others, with nodes developed to support Siemens S7, Modbus TCP, and many other standards.
• Home Automation: Direct compatibility with Home Assistant, openHAB, and similar ecosystems, plus nodes for consumer devices like Philips Hue, Sonos, and generic smart plugs.
• Databases: InfluxDB (notably popular in the Node-RED community), MySQL, MongoDB, and others—enabling both real-time and historic data tracking.
• Cloud Services: Ready-to-use nodes for AWS, Azure, Google Cloud, Microsoft Teams, Slack, and a wide range of APIs for data or control integration.

Vendors in both the PLC (Programmable Logic Controller) and IoT space are adopting Node-RED as a standard, reinforcing its importance in the automation landscape. From smart thermostats to industrial robots, if you can connect it to the web or a local network, Node-RED likely has a node for it.

The Node-RED Community: Survey Insights and Real-World Adoption

The strength and versatility of Node-RED are mirrored in its diverse user base, from individual makers to large-scale enterprises. According to the 2023 Node-RED Community Survey, which polled 780 members, usage is shifting from hobbyist projects to broader professional deployments across multiple industries.

Key stats from this community survey include:

• More than half of respondents have used Node-RED for over two years, indicating a mature and stable community.
• Node-RED is increasingly seen as a professional tool, not just for home automation but for mission-critical applications in industry and business.
• MQTT and HTTP are the most widely used messaging technologies within Node-RED projects, with InfluxDB being the top database choice for recording and analyzing data.
• Community satisfaction is high, with over two-thirds of users rating the tool 5 out of 5 for their needs.
• Perceived barriers to adoption include the misconception that Node-RED is only suitable for prototyping and the desire for a few more advanced features.

This feedback is actively shaping Node-RED’s future, pushing it towards more robust production capabilities, improved support, and deeper integrations.

Is Node-RED Right for You?

If you’re looking for a tool that bridges the gap between code-heavy development environments and no-code platforms, Node-RED fits the bill perfectly. It’s approachable yet powerful, with flexibility at every level—whether you’re connecting a handful of sensors in your living room or orchestrating hundreds of machines in a smart factory.

The availability of thousands of nodes, a massive supportive community, and ongoing vendor support make it a safe bet for both experimentation and long-term investment. And because it’s open source, you’re never locked in—a big plus for those worried about vendor dependencies or long-term costs.

Common Barriers and How to Overcome Them

Despite its popularity, some users still perceive Node-RED as just a prototyping tool or struggle with more advanced use cases. However, the pace of development, regular community feedback, and the rise of projects like are pushing the boundaries of what’s possible—think collaborative development, remote deployment, and integration with modern DevOps workflows.

For newcomers, the learning curve is gentle, with tons of documentation, example flows, and tutorial videos available online. If you hit a roadblock, odds are someone in the Node-RED community has faced the same problem and documented a solution.

Getting Started

Installation is straightforward—Node-RED runs wherever Node.js runs, which means you can deploy it on everything from a Raspberry Pi to cloud servers to industrial PCs. The official site (nodered.org) offers step-by-step guides, and once you launch the editor you can start experimenting immediately with flows, adding nodes from the palette, and deploying your projects in real time.

If you want to extend functionality, custom nodes and integrations can be written in JavaScript or downloaded from the Node-RED community’s flow library. With its modular design, you’re only limited by your imagination (and maybe your Wi-Fi range).

Node-RED’s combination of simplicity, extensibility, and real-world reliability has made it a favorite for everyone from bedroom tinkerers to professional engineers. Its low-code, visual approach brings powerful automation within reach of anyone, while its expanding ecosystem keeps it relevant in the rapidly changing worlds of IoT, home automation, and industrial tech. If you’re looking to automate, integrate, or experiment, Node-RED is well worth your attention and a tool that’ll likely keep growing for years to come.
