Torsion Springs: Complete Guide to Types, Design, Applications & Selection

If you’ve ever opened a garage door, played with a clothespin, or fixed a creaking hinge, you’ve felt the force of a torsion spring in action—even if you didn’t know it at the time. These unassuming, tightly wound coils power a staggering variety of mechanisms, big and small, bringing movement to modern machinery and everyday tools alike. From the slow, measured tick of a mechanical clock to the heavy, counterbalanced lift of an industrial door, torsion springs are the quiet workhorses behind countless innovations.

But what exactly makes a torsion spring different from other kinds of springs, and why is getting the details right when choosing or designing one so important? Dive into this guide to uncover the ins and outs of torsion springs, from the basic science of how they store energy, to the subtle art of measuring, selecting, and caring for them. Whether you’re an engineer, a DIY enthusiast, or simply curious about the hidden mechanics all around you, by the end you’ll see these springs in a whole new light—and know exactly how to leverage their strength for your next project.

What is a Torsion Spring?

Torsion springs are mechanical components designed to store and release energy by twisting their coils around an axis. Unlike compression springs, which push back when you squeeze them, or extension springs, which pull back when you stretch them, torsion springs resist rotational or twisting forces known as torque.

The core function of a torsion spring is to apply a force that tries to return an object to a specific angular position. This makes them invaluable in applications that require smooth, reversible rotation, like returning a lever to its original place or holding a door open at a certain angle.

How Torsion Springs Work

At its heart, a torsion spring consists of a wire or rod tightly wound into a helical (spiral) shape with two straight legs extending from either end. One leg is attached to a stationary object, while the other connects to a moving part. When the moving component rotates, it pulls one leg in a new direction, twisting the coils tighter around the axis.

This twisting action causes the spring to build up torque. When force is released, the stored energy pushes the moving part back—essentially acting like a rotational version of how a stretched rubber band wants to contract.

The Science Behind Torsion Springs: Hooke’s Law for Rotation

Just as linear springs obey Hooke’s Law (force is proportional to displacement), torsion springs follow a similar law for angular deflection:

The negative sign just means the torque always works to oppose the direction of twist, driving the system back to neutral.

For those who love numbers, the energy stored in a torsion spring can be calculated as:

Torsion Spring Types and Variants

Torsion springs come in several shapes and flavors, each tailored for unique needs:

• Helical Torsion Springs: The classic coil shape, where force is applied at the legs to generate torque through coil winding. These are the most common form and can be seen in everything from clothes pegs to mouse traps.
• Double Torsion Springs: Consist of two coiled sections wound in opposite directions (one right-hand, one left-hand) joined by a central leg. They offer increased torque and are perfect for applications that require more balanced rotational force or higher load capacity. Each side operates in parallel, so the total output torque is the sum of both sections.
• Torsion Bars: Instead of coils, a straight bar is twisted along its length to provide resistance. Used mainly in automotive suspension systems.
• Torsion Fibers: Ultra-thin strands (such as silk, glass, or quartz) used in delicate instruments. Their extreme sensitivity to torque makes them ideal for precision applications like scientific measuring devices.
• Clock Springs: Also called spiral or mainsprings, they’re wound in a flat spiral (like a tape measure). Found in mechanisms needing consistent torque over several revolutions, such as watches and timers.

Common Applications: Where Torsion Springs Shine

You’ll find torsion springs powering an amazing variety of devices across multiple industries:

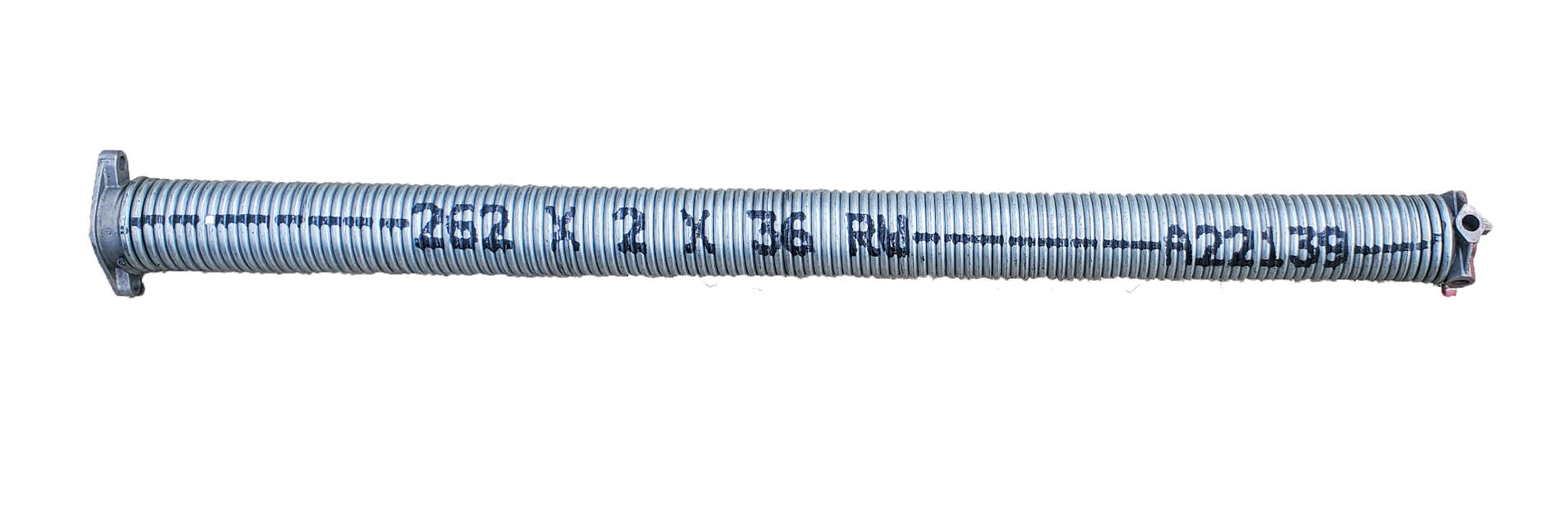

• Garage Doors: Large helical springs counterbalance the heavy door, making it possible to lift even the heaviest garage doors smoothly and with minimal effort.
• Door Hinges: Hold doors open or closed at set angles, or gently return them to center.
• Clothespins, Mousetraps, and Clips: Provide the restoring force for opening and closing motions.
• Automotive Suspensions: Torsion bars absorb shocks and stabilize vehicles by twisting in response to bumps and uneven roads.
• Watches and Clocks: Balance wheels and hairsprings help ensure regular timekeeping via delicate, consistent torsional movements.
• Electronics and Cameras: Pop-up mechanism in camcorders and compact disc players, as well as precision controls.
• Ancient Weaponry: Torsion springs (twisted ropes or sinew) powered ancient siege machines like the ballista and the catapult.
• Scientific Instruments: Torsion balances and pendulums are essential for precise force and mass measurements, enabling experiments that defined physical constants.

In any application where a controlled and measured rotational force is required, torsion springs are likely present, working silently.

Stock vs. Custom Torsion Springs: Which Should You Use?

The big question for any designer or repair pro is whether to select a stock (off-the-shelf) torsion spring or commission a custom design. Here is a guide to help you decide:

• Stock Torsion Springs: These are prefabricated to fit common sizes, materials, and capacities. Choosing a stock spring is fast, economical, and recommended for prototypes or repairs—provided you can find a match for your specifications (diameter, length, wire thickness, leg angle, winding direction, etc.). Popular suppliers like The Spring Store by Acxess Spring or Lee Spring offer thousands of options in their online catalogs.
• Custom Torsion Springs: If your application requires a unique configuration, high load, or a non-standard environment, it is best to request a custom spring. Manufacturers offer specialized technical support, material selection, coating options, and CAD design assistance to optimize performance and durability. Companies like MW Components handle everything from prototyping to high-volume production, assisting at every stage of design.

How to Measure a Torsion Spring Accurately

Whether you are replacing a worn part or specifying a new one, accurate measurements are fundamental. Torsion springs seem simple, but their effectiveness lies in careful sizing and choosing the right configuration.

Use this list for typical measurements:

• Wire Diameter: The thickness of the coil wire, measured with digital calipers or a micrometer. Even small variations can alter torque capacity and fit.
• Outer Diameter: The total distance across the coils (including the wire).
• Body Length: The length of the central coil section (excluding the legs).
• Total Number of Coils: Count all turns in the body to determine the active coils that participate in the load.
• Leg Length: This affects how and where the spring can be mounted.
• Leg Angle (Free Angle): The angle formed between both legs when the spring is unloaded. Typical free angles include 90°, 120°, 180°, 270°, and up to 360°.
• Direction of Wind: Whether the spring is right-hand wound or left-hand wound. An essential detail—torsion springs only work correctly if loaded in the direction that tightens the coils. Loading in the opposite direction can cause deformation or sudden failure.

Tip: Place the spring in your hand with your thumb pointing up and your fingers wrapping around the body. If the final coil follows the direction your fingers curl, that is the winding direction (either right or left).

Key Concepts in Torsion Spring Design

To get the right spring, factors beyond measurements must be considered. Pay attention to:

• Loads/Torque: Specify load requirements at a fixed angular position, rather than maximum deflection. This ensures consistent performance.
• Direction of Wind: Always load the spring to wind up the coils, not to unwind them. Correct winding generates beneficial internal stresses and prevents premature failure.
• Mandrel Size: The support structure (the shaft) must have a diameter close to 90% or less of the spring’s inner diameter at maximum deflection. A mandrel that is too small can cause the spring to buckle under heavy load.
• Clearance: Ensure there is enough space around the spring to handle any expansion in length during operation.
• Friction and Hysteresis: For applications with smooth movement or minimal energy loss, use springs with a smaller pitch between coils or additional space to reduce internal friction.
• Material Selection: Torsion springs can be made from materials like music wire (high strength), stainless steel (corrosion resistance), and heat-resistant alloys. Choose according to your operating environment—coatings like zinc, black oxide, or gold can extend service life in harsh conditions.

Torsion Spring Leg Designs and Attachment Options

The way you connect torsion springs to your mechanism is just as important as any other aspect of the design. Key options include:

• Leg Configurations:
  • Axial: Legs project in the same plane as the coils.
  • Tangential: Legs extend in a line tangent to the coil.
  • Radial: Legs are perpendicular to the body axis.
  • Custom Bends: Coils can be adjusted with hooks, loops, or offset arms to suit mounting requirements.
• Free Leg Positions: Available with legs at 90°, 120°, 180°, 210°, 270°, 300°, or 360° to match standard geometries.
• Equal or Unequal Leg Lengths: Some configurations require legs of the same length, others use different sizes for greater flexibility.

Measurement Example: Translating Specs Into Results

An example measurement for a medium-duty application might look like this:

With this information, you can:

• Search for a stock spring in major catalogs like The Spring Store or Lee Spring
• Use online design tools like Spring Creator to simulate performance, verify stresses, and predict lifespan
• Share the specifications with a manufacturer to get expert advice on supply or custom manufacturing

Selection Tips for Performance & Durability

The right torsion spring can determine the success or failure of a mechanism. Consider these selection strategies:

• Matching Winding Direction: Always confirm that the application loads the spring in a way that tightens, not loosens, the coils.
• Material and Finish: In humid, saline, or high-temperature environments, opt for stainless steel or special alloys. Surface treatments like zinc, black oxide, or gold extend resistance.
• Cycle Life: For applications with frequent and heavy movement (like industrial doors), select springs with a high cycle count, optimized for fatigue resistance. Design tools help predict lifespan based on your parameters.
• Installation Care: Adequate support for legs, alignment on the shaft, and avoiding excessive stress at bending points significantly increase service life.
• Maintenance: Occasional lubrication reduces friction and wear. Regular inspection helps detect damage or fatigue before they cause failure.
• Stress Testing: Use online calculators or technical assistance to anticipate stress levels and deformations before finalizing the design.

Challenges in Testing and Specifying Torsion Springs

While they are essential components, measuring and testing torsion springs can be surprisingly complicated. For example, torque readings can vary due to friction or slight manufacturing variations. Additionally, the inner diameter can reduce during deflection, making the fit critical if the spring rotates on a shaft or fits into a tight housing.

Even experts recommend designing with safety margins and consulting with manufacturers for applications with strict tolerances, high cycles, or unpredictable loads.

Glossary: Torsion Spring Terminology

• Active Coils: The part of the spring that actually flexes during torsion, as opposed to the dead coils at the ends.
• Angular Deflection: The angle at which the spring legs move from their “free” (unloaded) position during operation.
• Mandrel: The rod or shaft that serves as the axis around which the spring rotates.
• Spring Rate: The amount of torque generated for each degree (or radian) of angular deflection, usually expressed in Nm/deg or lb-in/rad.
• Maximum Deflection: The maximum torsion the spring can withstand before permanently deforming or yielding.
• Total Coils: All turns of the spring, including the dead coils at the ends.
• Leg Angle: The relative position between the legs at rest. It determines how the spring will function in an assembly.

Historical and Modern Innovations: Torsion Springs in Technology

Torsion springs have centuries of history—from powering medieval catapults to early scientific experiments in electricity and gravity. The torsion balance invented by Coulomb allowed scientists to determine electrostatic and gravitational forces with precision. In modern times, the D’Arsonval movement harnesses delicate torsion to create mechanical electric current meters.

Automotive engineers use torsion bars to improve ride comfort and control roll, and in digital technology, micromirrors in projectors use similar mechanisms. Wherever a controlled rotational force is required, inventors continue to find new ways to leverage the simplicity of torsion springs.

Where to Buy and How to Source Torsion Springs

Ready to find the perfect torsion spring? Start with established suppliers:

• MW Components: Offers stock and custom springs, technical support, and regulatory compliance (RoHS, REACH, DFARS).
• The Spring Store: Features an online database and design tools like Spring Creator for digital prototyping.
• Lee Spring: Large inventory, plus custom design and quick quotes for unique requirements.

Have your measurements ready and don’t hesitate to ask for advice—reliable vendors will help you get the right part for your project.
