The Raspberry Pi Compute Module 5 enters the market with a proposal that combines enhanced performance, flexibility, and a compact design tailored for industrial projects and embedded applications. This module inherits much of the technology from the successful Raspberry Pi 5, but with adaptations that make it ideal for custom integrations.
With this new release, Raspberry Pi reaffirms its commitment to developers and businesses seeking modular and scalable solutions. The CM5 not only offers significant power improvements but also expands possibilities with new features and accessories designed to streamline real-world implementations.
Key Specifications of the CM5

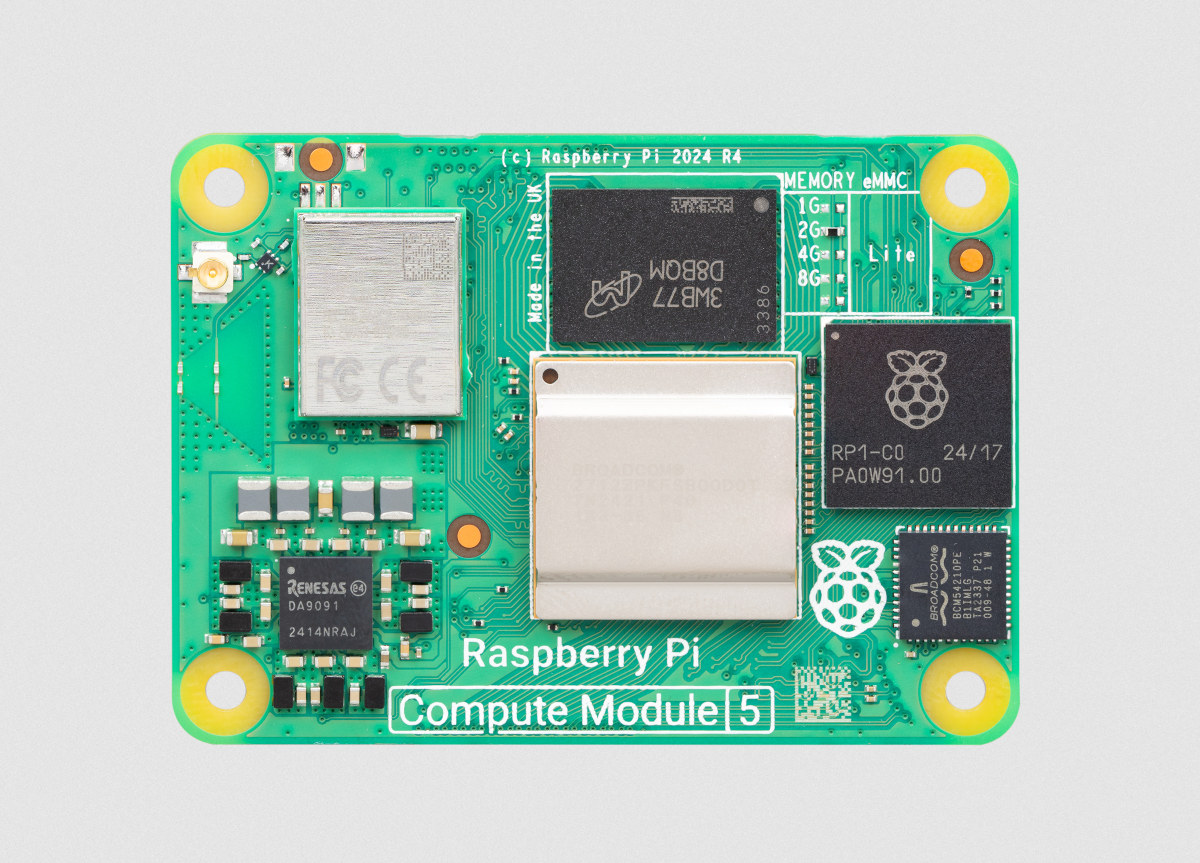

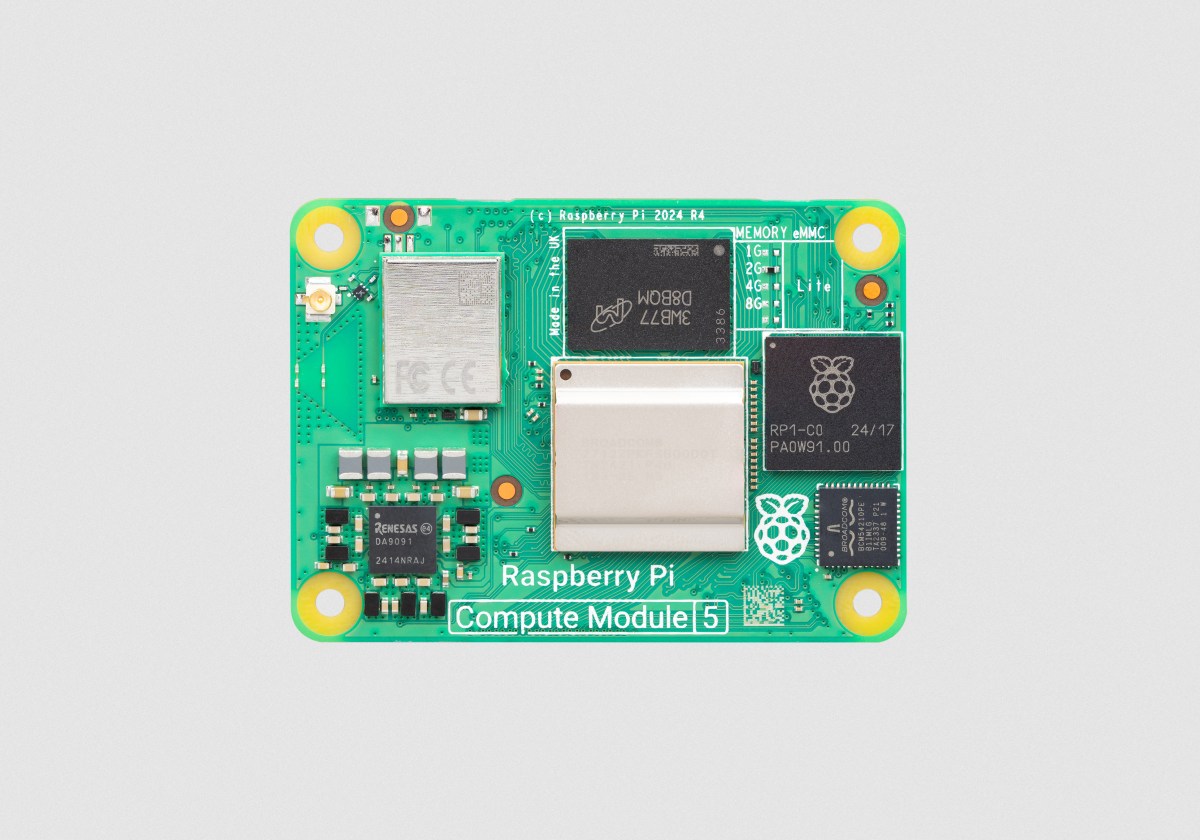

At the heart of the Compute Module 5 is a Broadcom BCM2712 processor featuring four Cortex-A76 cores clocked at up to 2.4 GHz. This performance leap is complemented by a VideoCore VII GPU, supporting OpenGL ES 3.1 and Vulkan 1.2 graphics, as well as 4K video decoding at 60 fps.
- RAM: Options of 2 GB, 4 GB, 8 GB, and a future 16 GB LPDDR4x with ECC (error correction).
- Storage: Models with 16 GB, 32 GB, or 64 GB of eMMC and a CM5 Lite version without internal storage for use with microSD cards or SSDs via PCIe.
- Connectivity: Gigabit Ethernet with IEEE 1588 support, optional Wi-Fi 5, and Bluetooth 5.0.
- Ports: Two USB 3.0, one USB 2.0, two HDMI 2.0 outputs supporting 4K, and MIPI CSI/DSI for cameras or displays.
- PCIe: Gen 2 x1 interface for high-speed devices, including NVMe SSDs.
Compatibility and Changes from the CM4
The CM5 retains the same physical form factor as its predecessor, the CM4, simplifying upgrades in existing devices. However, it introduces pin design changes and replaces the old CSI-2 and DSI ports with USB 3.0, enhancing its versatility.
Additionally, the inclusion of ECC RAM strengthens its reliability in critical environments. While most CM4 hardware is compatible, some older boards may require adaptations depending on the manufacturer.
Official Accessories and Development Tools
To support development efforts, Raspberry Pi has released a series of complementary accessories:
- IO Board: An expansion board for connecting essential peripherals such as HDMI, USB, and GPIO, as well as an M.2 slot for NVMe SSDs.
- Metal Case: A robust design that protects both the CM5 and the IO Board, ideal for industrial environments.
- Heat Sink: A critical accessory for managing the heat generated by the improved performance.
In addition, Raspberry Pi offers a development kit that includes all necessary components to get started with the CM5, from HDMI cables to an antenna for wireless models.
Pricing and Availability
The Compute Module 5 is available starting at $45 for the base model without internal storage and up to $95 for the version with 8 GB of RAM and 64 GB of eMMC. Prices vary depending on the configuration but represent an economical option given its performance and versatility.
Accessories, such as the IO Board, are sold separately, with prices ranging from $5 for the heat sink to $20 for the interface board. Raspberry Pi guarantees continuous production of the CM5 at least until January 2036, ensuring availability for long-term projects.
Use Cases and Applications
The CM5 is designed to meet the needs of developers and businesses across various sectors. From industrial control systems to Internet of Things (IoT) devices, this module provides the power and flexibility needed for advanced projects.
Its support for hardware-accelerated cryptography, combined with the ability to handle multiple peripherals, makes it an ideal solution for critical applications and sophisticated consumer products.
Finally, the planned long-term support and extensive user community ensure that the CM5 will remain relevant and valuable well into the future.
