Pull-up Resistors Explained: How They Work, When to Use Them, and Calculating Values

If you’ve ever dabbled in electronics, worked on a microcontroller project, or even just browsed Arduino forums, chances are you’ve heard the term “pull-up resistor.” Despite being a simple component, pull-up resistors are fundamental for ensuring reliable signals, especially when you’re dealing with digital inputs and outputs. Understanding what they are, how they work, and why they matter can save you countless hours of debugging unpredictable behaviors in your circuits.

Let’s be honest: pull-up (and pull-down) resistors might sound boring at first, but the moment your project goes haywire due to an input floating in the air, you’ll wish you’d mastered them from the start. If you want your sensors, switches, or even ECUs working as expected, getting a grip on pull-up resistors is critical. Don’t worry — we’ll break down everything you need to know using straightforward language, real-world examples, and without skipping any essential detail.

What Is a Pull-up Resistor?

A pull-up resistor is a regular resistor connected between a voltage supply (often called VCC — usually 3.3V or 5V) and a particular point in a digital circuit, normally a microcontroller input pin. Its core job is to ensure that this input defaults to a known logic level, specifically ‘high’, when no other component is actively driving the pin.

Imagine you have an input pin configured on your microcontroller, but nothing is connected to it. If the pin isn’t held at a steady voltage, it can “float,” picking up electrical noise from the environment and causing the MCU to read an unpredictable high or low value. To avoid this floating state, a pull-up (or pull-down) resistor is used to firmly define the idle logic level — most often, a pull-up for high.

These resistors aren’t just for switches; they’re frequently found paired with buttons, jumpers, DIP switches, analog sensors (like thermistors), and even complex wired bus protocols where multiple devices communicate over the same data line.

Why Do Circuits Need Pull-up Resistors?

So what’s the problem if you don’t use a pull-up resistor? The answer hinges on how digital logic works. Many microcontrollers and logic circuits read their pins at discrete moments, looking for either a logic ‘1’ (high) or ‘0’ (low). When a pin is not connected directly to high or low, the voltage at that pin becomes indeterminate.This lack of certainty opens the gates to unexpected glitches, false triggers, or a total lack of response from your hardware.

Beyond the basic concern of unreliable operation, stray electromagnetic interference (EMI) or parasitic effects like leakage currents and circuit capacitance can cause the floating pin to oscillate or drift between logic levels. It’s like having a coin in mid-air between heads and tails — you just can’t predict what your microcontroller will read.

How Do Pull-up Resistors Work in Practice?

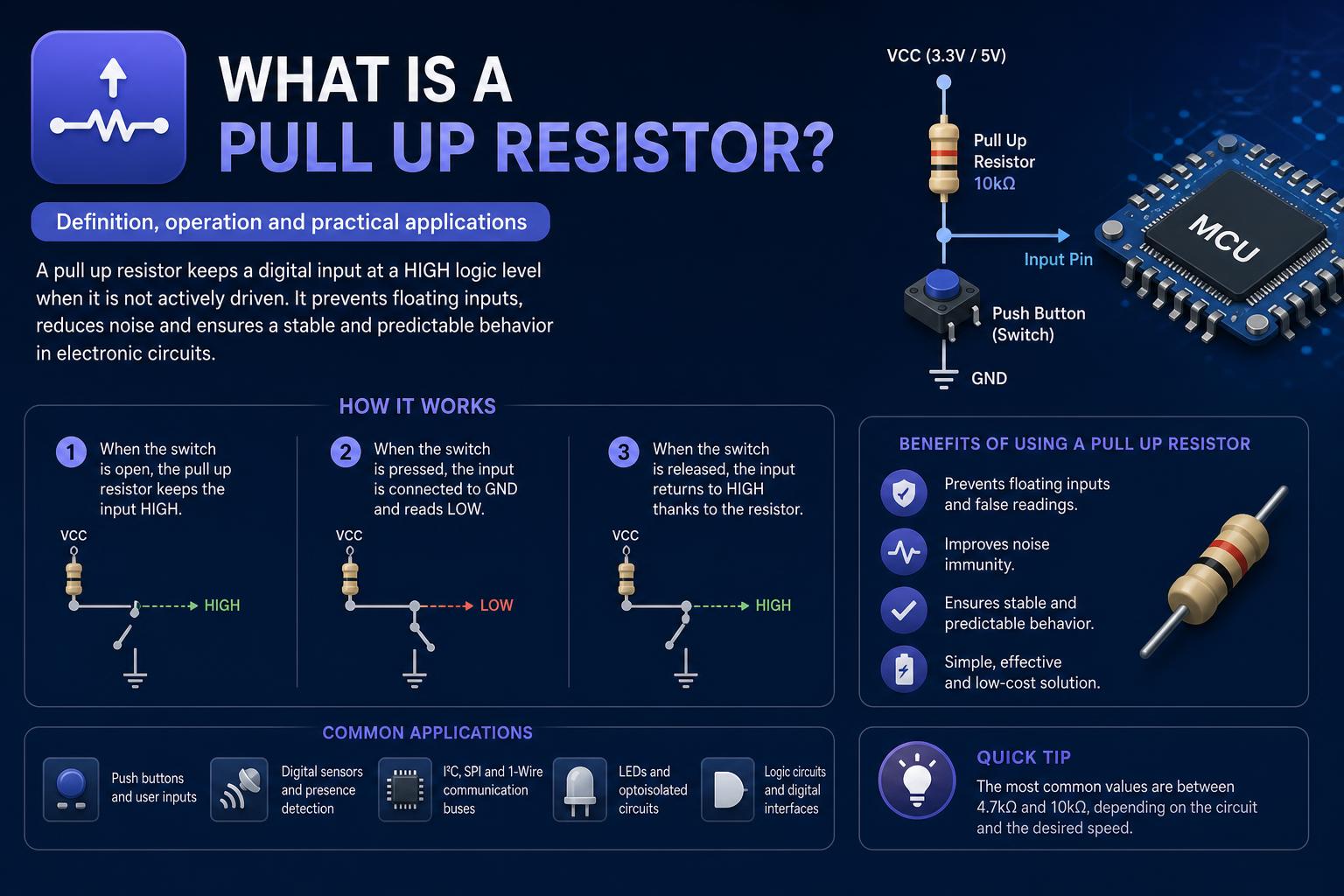

Let’s consider a classic scenario: You wire a button between an input pin and ground. With the button unpressed, the pin is not connected to anything — it floats. By connecting a resistor between VCC and that pin, the input will be pulled high when the button isn’t pressed.

• Button Unpressed: The input sees a voltage close to VCC, since a small amount of current travels through the resistor to the high voltage. The MCU reads ‘high’.
• Button Pressed: The input pin is now connected straight to ground. The resistor limits the current flowing from VCC to ground, preventing a direct short circuit. The pin voltage drops close to zero, and the MCU reads ‘low’.

Without the resistor, pressing the button would tie VCC and ground directly together, risking damage to your components or even creating smoke! The pull-up resistor safely manages current flow and ensures correct logic levels at every switch position.

Terminology: ‘Strong’ vs ‘Weak’ Pull-up Resistors

The value of the resistor determines how “strong” or “weak” the pull-up effect is. A low-value resistor (like 1kΩ) is called a strong pull-up — it draws more current when the pin is pulled low, but sets the voltage level faster (good for high-speed circuits). A high-value resistor (like 100kΩ or more) is a weak pull-up — less current overall, but slower response times due to the RC (resistor-capacitor) effect in the circuit.

Choosing pull-up values is all about compromise:

• If the resistor is too small: You’ll waste energy as heat, and the circuit could draw more current than your components can safely handle, especially in battery-powered setups.
• If the resistor is too large: The pin might not reach a solid high level, and response to changes could become sluggish due to capacitance across the signal line.

How to Select the Right Pull-up Resistor Value

Let’s break down the rules for picking a pull-up resistor. The exact value depends on the application, but a common choice is around 10kΩ for most MCU or digital logic inputs. Generally:

• Digital buttons and switches: 1kΩ to 10kΩ is standard.
• Open-drain or open-collector outputs: 1kΩ to 4.7kΩ for faster protocols or bus lines (like I²C or USB).
• Analog signal voltage dividers (sensors): 1kΩ to 100kΩ, depending on input impedance and response speed needed.

The basic method for calculating the resistor uses Ohm’s Law (V = IR). For example, if you want to limit input current to 1mA on a 5V supply when the button is pressed: R = V/I = 5V/0.001A = 5,000Ω (5kΩ). This protects the button and circuit from excessive current, ensuring the switch won’t overheat or cause problems.

Understanding Input Impedance and Voltage Dividers

The microcontroller (or logic gate) input itself isn’t a perfect open circuit — it presents a certain resistance, known as input impedance. When the pull-up resistor is in place and the button is not pressed, there’s a tiny current flowing from VCC through the resistor and into the pin’s input impedance, forming a voltage divider.

To make sure the pin reads ‘high’ reliably, the pull-up resistor needs to be much smaller than the input impedance — as a rule of thumb, about 1/10^th (an order of magnitude less). If both resistances are similar, the voltage at the pin might be ambiguous (for a 5V system, ~2.5V is neither high nor low for most MCUs, leading to erratic readings).

Pull-up Resistors in Common Circuits and Their Applications

Besides switches and buttons, pull-ups are found in several key places:

• Bus protocols (I²C, SMBus, USB): Multiple devices share a wire, and bus lines must default to logic high when not driven. Pull-up resistors guarantee a known state and prevent “bus contention” (more on transistor operation can be found here).
• Sensor interfacing (thermistors, switches): Sensors that change resistance — like NTC thermistors — can’t provide a voltage by themselves. Pairing them with a pull-up resistor creates a voltage divider, turning changes in resistance into measurable voltages that analog inputs can read. For detailed sensor interfacing, review the TFT display pinout guide.
• Configuration hardware (jumpers, DIP switches): Pull-up resistors are used so that removing a jumper (open circuit) sets a high logic level, and inserting one pulls the line low.
• Open-drain / open-collector outputs: Some logic chips only “sink” current (pull to ground, not source to VCC). The pull-up resistor steps in to set the line high when no one else is pulling it low.

Practical Examples and Usage in Real Projects

Microcontrollers often have built-in (internal) pull-up resistors that can be enabled by software. For example, the popular Arduino UNO (ATmega328) lets you activate internal pull-ups via:

pinMode(5, INPUT_PULLUP); // Internal pull-up resistor on digital pin 5

But these internal resistors may have limited range (often 20kΩ–50kΩ), and sometimes you’ll want an external resistor for better control or to tune the circuit for speed or power.

In Engine Control Units (ECUs) and aftermarket automotive electronics (for example: HP Academy’s guide), pull-up resistors keep sensors within safe operating limits.

• With a digital switch, the pull-up saves the pin from erratic behavior and prevents current from spiking straight to ground — a common recipe for electrical disasters if omitted.
• In analog sensor inputs (like for temperature), the pull-up is paired with the sensor in a voltage divider setup, translating resistance changes into voltage levels readable by the ECU (covered in detail later).

Ohm’s Law and Calculating the Current

Let’s get specific: Say you have a 5V circuit and want to design a pull-up for a digital input button so no more than 1mA flows when the switch is pressed.

• Total supply voltage (Vcc): 5V
• Desired current when pressed: 1mA (0.001A)

Applying Ohm’s Law: R = V/I = 5V / 0.001A = 5,000Ω (5kΩ). That means a 5kΩ resistor will keep that current in check.

If the value drops (say 1kΩ), more current flows — fine for fast digital signals, but not ideal for power savings. If you choose a 100kΩ pull-up, hardly any current flows, but the circuit will react slowly to voltage changes (the effect is substantial for high-speed communication lines).

Speed and Response Time Considerations

There’s a trade-off between power, noise immunity, and response time. The resistor interacts with stray capacitance in the line, forming an RC (resistor-capacitor) filter. Fast-changing signals like USB or I²C might require stronger pull-ups (1kΩ to 4.7kΩ) to ensure the voltage stabilizes quickly when devices stop actively driving the bus.

If you use a very high value pull-up on a high-speed line, the signal edges become “stretched out,” slowing communication and risking timing errors. Always match your pull-up strength to the protocol and wire length you use!

Advanced Details: Wired Logic and Multiple Inputs

Pull-ups (and pull-downs) are invaluable for creating certain logic functions with switches. For instance:

• Wired-AND/NAND: Multiple series-connected switches with a single pull-up resistor output a logic low only when all switches are closed — ideal for interlock circuits or safety systems.
• Wired-OR/NOR: Multiple parallel outputs sharing a pull-up resistor output a high unless at least one device pulls the line low. This is how open-collector outputs (like in shared bus systems or legacy TTL logic) work.

TTL vs CMOS: Pull-ups and Logic Families

Classic TTL (Transistor-Transistor Logic) and modern CMOS (Complementary Metal-Oxide-Semiconductor) logic families handle inputs differently when left unconnected.

• TTL: Inputs float high, but may require strong pull-down resistors to reliably register a logic ‘0’. Holding unused TTL inputs low with pull-downs increases power consumption (standard inputs at logic 1 draw about 40μA; logic 0, as much as 1.6mA). Therefore, pull-ups are more common — 1kΩ–5kΩ is typical for 5V TTL.
• CMOS: Inputs are voltage-controlled, so higher pull-up values (even 100kΩ+) are feasible. Less current leaks, and both pull-ups and pull-downs are viable based on circuit needs.

Drawbacks and Limitations of Pull-up Resistors

Pull-ups have their downsides. Any current that flows through the resistor when the switch is closed is wasted as heat. In power-sensitive environments or battery-powered setups, that wasted energy adds up. You can minimize these losses by selecting the highest value resistor that still guarantees reliable logic levels and signal speed.

Pulled-up lines are also susceptible to RC delay: Stray capacitance forms a low-pass filter with the resistor, stretching out voltage transitions. In high-frequency circuits, this limits operational speed and may distort pulse timing. Additionally, some logic families may inadvertently introduce power supply transients through their inputs when using pull-ups — consider filtering or separate supply rails for ultra-sensitive applications.

Real-World Example: Using Pull-up Resistors with a Thermistor

Let’s see a more complex use case from automotive ECUs (). Many engine sensors, like air temperature sensors, are NTC (negative temperature coefficient) thermistors. They don’t output a voltage — their resistance changes with temperature.

To make them readable by the ECU:

1. Connect one thermistor wire to the analog input pin.
2. Connect the other thermistor wire to ground.
3. Add a pull-up resistor between VCC (5V) and the same input pin — forming a voltage divider circuit.

As the temperature changes, the thermistor’s resistance shifts, altering the voltage seen at the input pin. By referencing a pre-calibrated table, the ECU can precisely calculate temperature.

The same voltage divider principle applies to any resistive sensor or configuration hardware. You can calculate the resulting voltage at any temperature (or resistance) using Ohm’s Law:

• Total resistance = pull-up + sensor resistance
• Current (I) = VCC / total resistance
• Voltage at pin = I × sensor resistance

Most modern ECUs allow you to integrate the appropriate calibration table or formula, adjusting for both internal and external pull-up resistors as needed.

Enabling and Configuring Pull-up Resistors

On some microcontrollers, like the Arduino, you can activate internal pull-ups using code. On more advanced devices, especially ECUs, you may be able to select which pins have which resistor values (internal or external). When adding additional sensors beyond what the header provides, you can use any generic analog input, wire in your own pull-up resistor to VCC, and calibrate accordingly via software.

Keep in mind that ECUs and microcontrollers often have dedicated configuration options for analog vs digital pins, to ensure the correct resistor behavior for your sensor.

The mastery of pull-up resistors is essential to guarantee circuit stability. They define the default state of an input whenever no opposing signal is present. By understanding the appropriate resistor values and their trade-offs, you can optimize power consumption, response times, and reliability, whether working with buttons, communication buses, or sensors. Proper use of pull-ups can save significant troubleshooting time, notably by preventing floating pins and the unpredictable behaviors they cause.
